2012 Generator

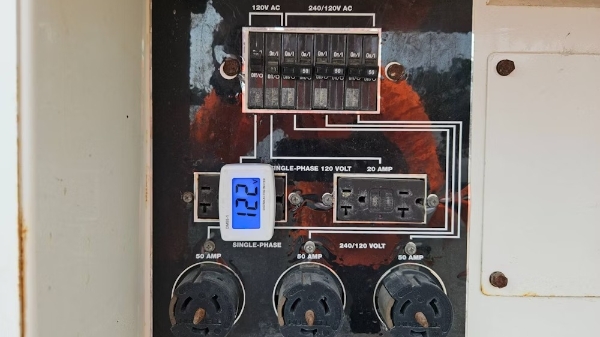

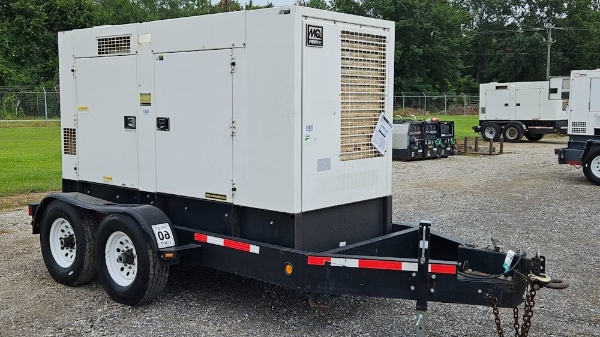

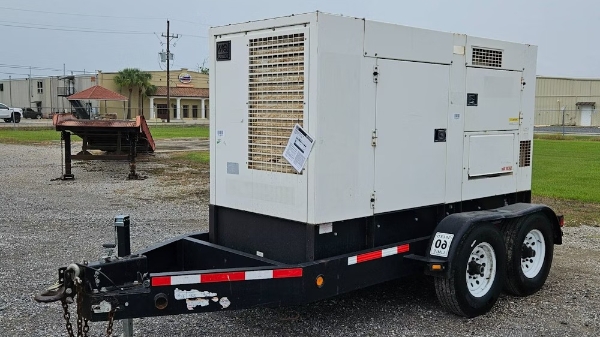

2012 Multiquip DCA-125USI 100kW Towable Generator (125kVA Genset), Single Phase And 3 Phase | Generator Output Prime output: 100 kW (125 kVA) at 0.8 power factor Standby output: 110 kW (137.5 kVA) Frequency: 60 Hz Speed: 1800 RPM Phase: 3-phase standard (switchable to single-phase) Engine Model: Isuzu 4HK1X (Tier 3) Type: 4-cylinder, turbocharged, direct-injection, air-to-air intercooled Rated power: 152 hp at 1800 RPM Emissions: Tier 3 compliant Fuel System Fuel type: Diesel Fuel tank capacity: 169 gallons Runtime: Approx. 23 hours at full load, 42 hours at half load Alternator & Voltage Control Brushless, open-delta design Automatic voltage regulator: ±0.5% regulation Electronic governor: ±0.25% frequency stability Voltage Options 3-phase: 208Y/120, 220Y/127, 240Y/139, 416Y/240, 440Y/254, 480Y/277 Single-phase: 240/120 selectable Main breaker: 350 amps Twist-lock outlets: Three 50 amp Duplex outlets: Two 20 amp GFCI Control Panel Digital engine monitoring: Oil pressure, coolant temperature, battery voltage, RPM, load, fuel level Analog generator gauges: Voltmeter, ammeter, frequency meter, phase selector switches Safety shutdowns: Low oil pressure, high coolant temp, over-speed, over-crank, low DEF Noise Level Sound level: 65 dB(A) at 23 feet Enclosure: Ultra-silent, sound-attenuated steel housing Dimensions & Weight Dry weight (no fuel): 5,689 lb Operating weight (with fuel): 7,012 lb Trailer-mounted dimensions (with TRLR150US): Length: 184 inches Width: 83 inches Height: 124 inches
We support both short and long hauls across state lines. Transportation is not included in your rental rate. Once an order is placed you will receive a quote within 1 business day.
Equipment can be used for 160 hours per month throughout the length of the rental. Total usage is calculated cumulatively over the entire rental.
Any hours used over the 160-hour cumulative monthly limit will be charged at the end of the rental and will appear on your final statement.
You are free to extend a rental as needed.
To receive a full refund, cancellations must be made at least 24 hours before the first machine in the order is picked up. Charges may apply for cancellations made after this period.
